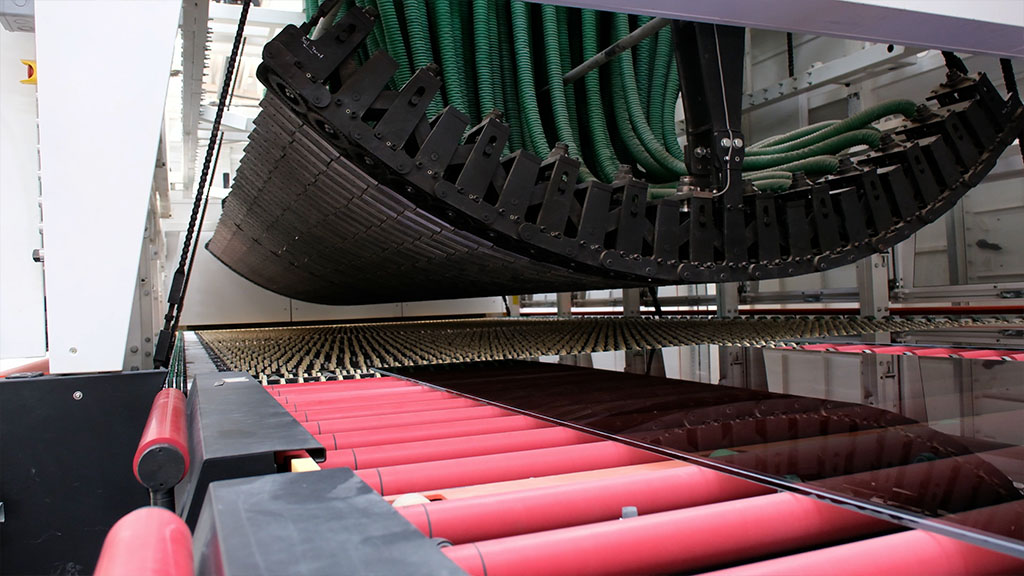

Similar to flat tempering, this process involves heating glass to a pliable state, bending it to a specified curvature, and then cooling it rapidly to strengthen. This creates strong, curved glass for specialized architectural applications.
Maximum Dimension
6000 x 3300mm
Machines
3x Curved Tempering Machines
Minimum Radius (mm)
| Glass Thickness (mm) | 1st Machine max dimension, H x Arc (mm) 3300 x 1200 | 2nd Machine max dimension, H x Arc (mm) 3300 x 2500 | 3rd Machine max dimension, H x Arc (mm) 6000 x 3300 |
|---|---|---|---|
| 4 | 1000 | – | – |
| 5 | 550 | 1000 | – |
| 6 | 550 | 1000 | 1500 |
| 8 | 1000 | 1000 | 1500 |
| 10 | 1200 | 1200 | 2000 |
| 12 | 1500 | 1500 | 2000 |
| 15 | 1500 | 1800 | 2500 |
| 19 | – | 2000 | 2500 |
